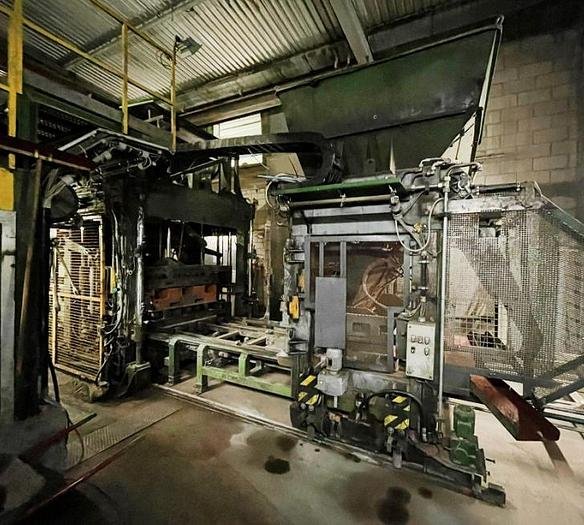

The Zenith 860 AZ Block Moulding Machine is a proven and durable solution designed for large-scale concrete block production. This listing includes not only the core machine but also a complete production line, making it a fully functional plant ready for immediate operation after installation.

Manufactured in 1988, the system has been continuously operated at the same location and maintained in working condition until it was decommissioned at the end of 2023. The plant was running in a two-shift production system, demonstrating its reliability and capability for sustained industrial use.

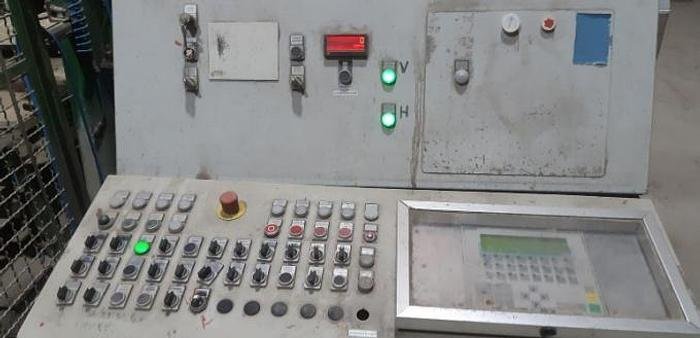

This block moulding system is designed for the production of both core and face mix concrete products, ensuring flexibility in manufacturing different types of blocks. The machine uses a Simatic S5 control system with Zenith visualization, enabling efficient process management and operation.

With a board size of 1,400 × 950 mm and a maximum product height of 14 cm, the Zenith 860 AZ is suitable for producing a wide range of concrete blocks. The pneumatic quick mould clamping system allows for faster mould changes, improving production efficiency.

The included production line features a comprehensive setup of handling systems, conveyors, elevators, stackers, and packaging units, ensuring a smooth and automated workflow from material feeding to finished product handling.

Why Choose Zenith 860 AZ Production Line?

This plant is ideal for businesses looking for a complete, ready-to-run concrete block manufacturing solution.

Key advantages include:

• Full production line included
• Proven long-term reliability
• Suitable for continuous industrial production
• Flexible block production capabilities
• Cost-effective alternative to new plants

It is a strong choice for manufacturers seeking a complete and operational block production system.

Key Features

✔ Complete Production Line

Includes full system from material feeding to finished product handling.

✔ Dual Mix Production Capability

Supports both core mix and face mix concrete production.

✔ Advanced Control System

• Simatic S5 with Zenith visualization
• Efficient and reliable process control

✔ High Production Efficiency

• Operated in two-shift system until 2023
• Designed for continuous operation

✔ Quick Mould Change System

• Pneumatic clamping for fast mould replacement

✔ Large Board Capacity

• Includes 1,900 production boards
• Made from durable pine wood

Production Line Components

The system includes:

• Hydraulic pushers (wet side)

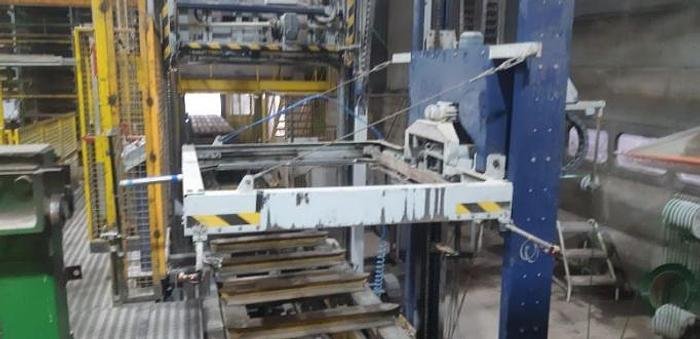

• Elevator with 14 levels and double stroke

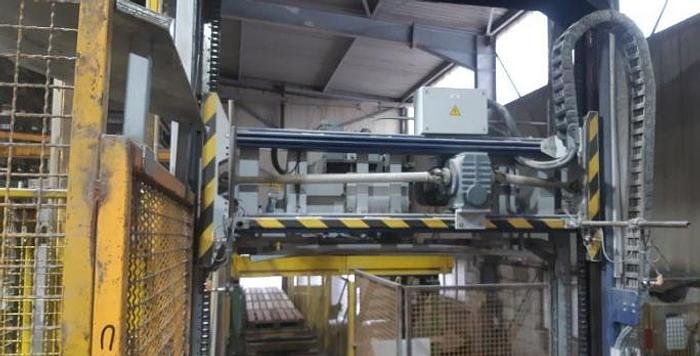

• Transfer vehicle with rotating upper frame

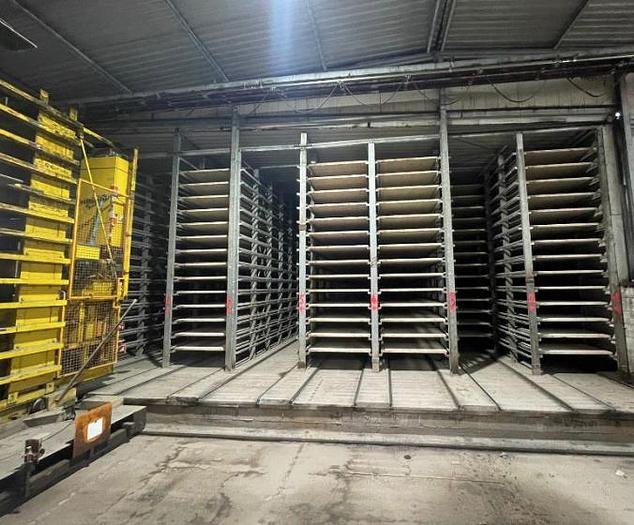

• 8-row dry rack with 14 levels
• Transfer platform with cable drum drive
• Lowerator system
• Hydraulic block demoulder and doubler
• Hydraulic packer with rotating unit
• Board cleaning brush and board turner
• Board stacking and destacking systems
• Cross conveyors and buffer conveyors
• Horizontal package transport system (35 cars)
• Pallet magazine for Euro pallets
• Horizontal and vertical strapping units
• Stairway crossings

Technical Specifications

General Information

• Manufacturer: Zenith
• Model: 860 AZ
• Year: 1988
• Condition: Used
• Stock Number: 605

Block Machine

• Type: Board Machine
• Board Size: 1,400 × 950 mm
• Maximum Product Height: 14 cm
• Mould Clamping: Pneumatic quick system
• Production Type: Core and face mix

Control System

• Simatic S5 with Zenith visualization

Material Handling System

• Elevator: 14 levels, double stroke
• Dry Rack: 8 rows, 14 levels
• Transport System: 35-car horizontal system

Bucket Conveyor

• Capacity: 1.5 m³
• Type: Rotating bucket system

Production Boards

• Quantity: 1,900 units
• Size: 1,400 × 960 × 50 mm
• Material: Pine wood

Applications

The Zenith 860 AZ production line is suitable for:

• Concrete block manufacturing
• Paver and brick production
• Construction material production
• Industrial precast operations
• Infrastructure projects

Benefits of This Equipment

🚀 Complete Turnkey Solution

Includes everything needed for block production.

💰 Cost-Effective Investment

Full plant at a fraction of new system cost.

🔄 Continuous Production Capability

Proven performance in two-shift operation.

⚙️ Reliable Engineering

Built by a trusted manufacturer with long service life.

🏗️ Scalable Production

Suitable for medium to large-scale manufacturing.
